Witcombe DIY Garden Room Kit

Create Stunning Additional Space with an Efficient, Insulated DIY Witcombe Garden Room; Designed by Us, Installed by You

witcombe

Witcombe Garden Room Kit

The Witcombe has the traditional look of a garden room but incorporating a stylish recessed front wall. The second of our apex designed DIY rooms, this elegant design offers great variety in its potential uses while achieving height requirements for permitted development if 2 metres from boundaries.

Witcombe DIY Garden Room Kits

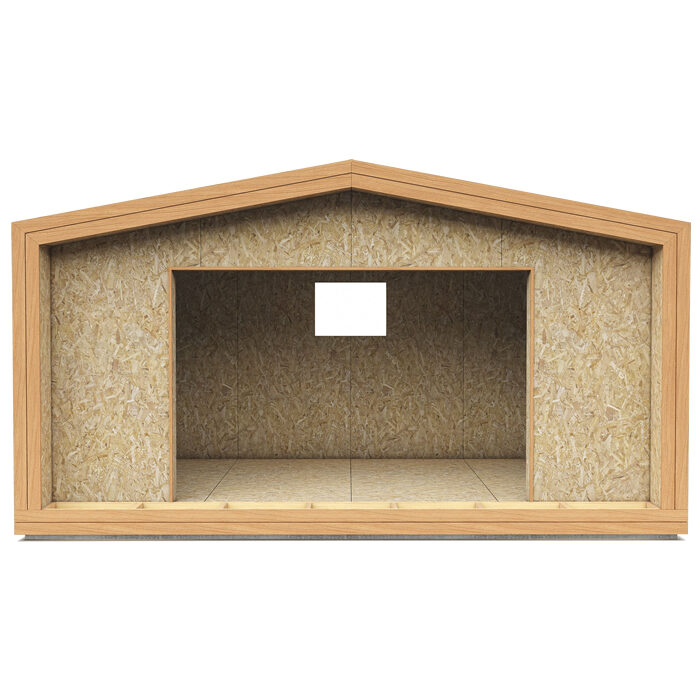

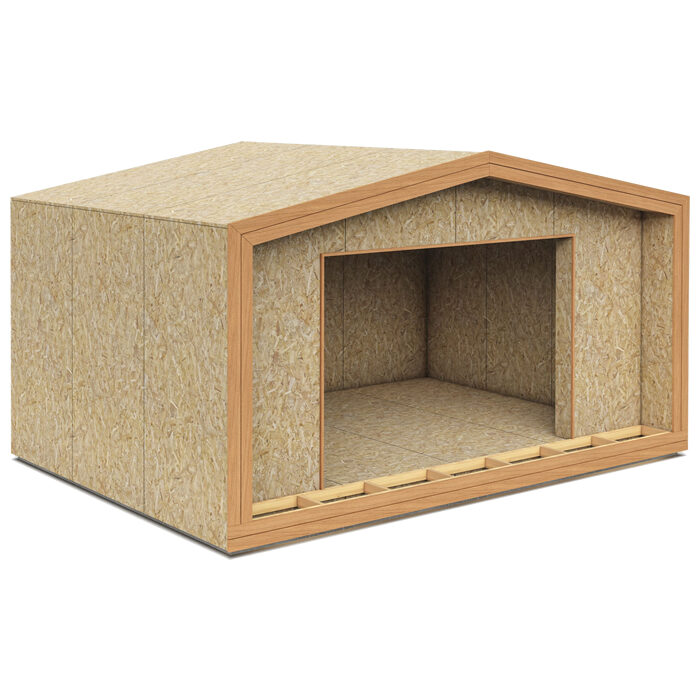

Shell Kit

The Shell Kit provides the insulated structure for your garden room or garden office.

Supplied as a pre-manufactured SIPs kit, with a full set of instructions and drawings, this garden room is quick and simple for a competent DIYer or builder to assemble on site. You can then finish the shell kit internally and externally to the specification required, offering the ultimate flexibility in the garden room’s finish and function.

Witcombe DIY Garden Room

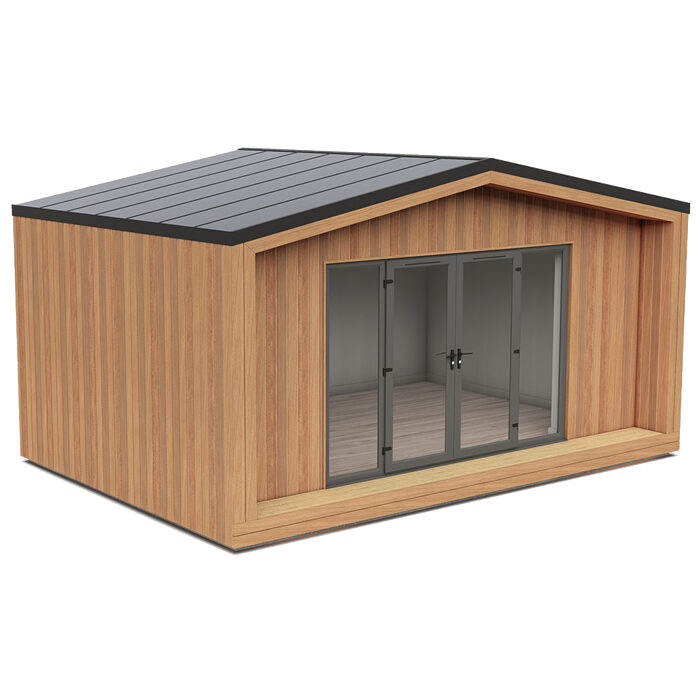

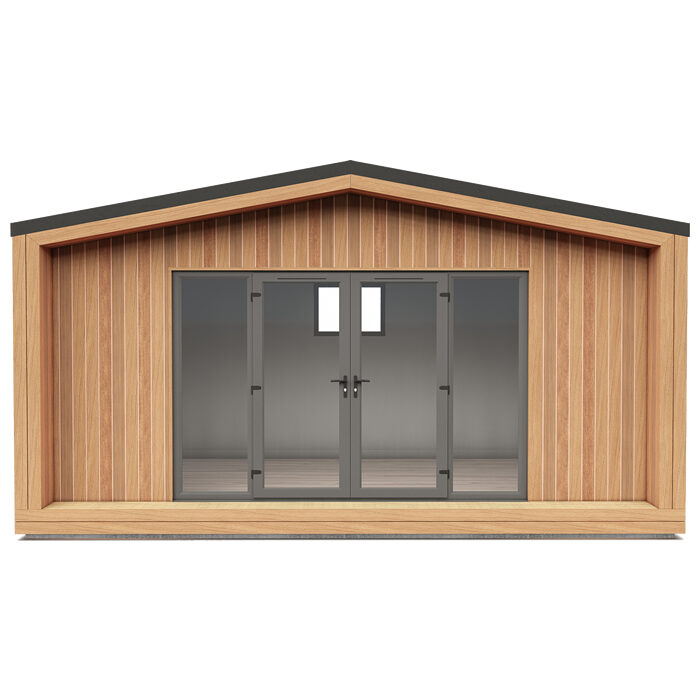

Shell & External Kit

The Shell & External Kit provides the insulated structure and external finishes for your garden room.

As with the Shell Kit, it is supplied as a pre-manufactured SIPs kit, with full instructions and drawings, with the addition of breather membrane, batten, EPDM roof kit, guttering and your choice of cladding and glazing to finish the room externally. The internal finishes can then be chosen and completed by the self-builder.

Rooms can be selected as a set size from our ‘off the shelf’ range or ‘made to measure’ for individual project requirements.

Witcombe DIY Garden Room Kit

Witcombe Shell Kit Features

  • SIP wall, roof and floor panels 122mm thick (100mm insulation)
  • SIP floor panels with bitumen coated underside
  • Water resistant floor bearers
  • Door opening and lintel sized to room from 2 metres to 2.8 metres
  • All splines, timber cappings and floor and top plates
  • Full fixing kit of screws and timber locks
  • Expanding foam and wood glue
  • 400mm overhang to front
  • D.P.C. and rain sheet
  • Full instruction guide and video
  • Full technical drawing, including ground screw layout (if required)
Witcombe DIY Garden Rooms

Witcombe Shell & External Kit Features

  • SIP wall, roof and floor panels 122mm thick (100mm insulation)
  • SIP floor panels with bitumen coated underside
  • Water resistant floor bearers
  • External cladding of your choice + 10%
  • Glazing for your size of room and lintel
  • Breather membrane
  • Cavity batten
  • Anthracite Grey Metal Roof Sheets
  • Guttering and down pipe
  • All splines, timber cappings and floor and top plates
  • Stainless steel brad nails
  • Full fixing kit of screws and timber locks
  • Expanding foam and wood glue
  • 400mm overhang to front
  • D.P.C. & rain sheet
  • Full instruction guide and video
  • Full technical drawing, including ground screw layout (if required)

Internal Finishes Kit

  • Decorative MDF Wall Panels
  • Cavity Batons
  • MDF Ceiling Sheets
  • Laminate Flooring & Underlay
  • Skirting Boards
  • Architraves
  • Wall & Ceiling Trims

Installation Videos

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

COMPLETE KIT

Wood Finishes / External Cladding Options

Witcombe Garden Room Kit Prices

Internal
Dimensions
W x D x H
Shell Kit
4m x 3m x 3m
Opening C
£5,997.00 + VAT
£7,196.40 Inc VAT
4m x 3.5m x 3m
Opening D
£6,370.00 + VAT
£7,644.00 Inc VAT
5m x 3m x 3m
Opening D
£6,557.00 + VAT
£7,868.40 Inc VAT
5m x 3.5m x 3m
Opening D
£7,062.00 + VAT
£8,474.40 Inc VAT
6m x 3m x 3m
Opening D
£7,163.00 + VAT
£8,595.60 Inc VAT
6m x 3.5m x 3m
Opening D
£7,778.00 + VAT
£9,333.60 Inc VAT

Rooms are set sizes. Delivery charges may apply and will vary subject to location.

Download Price List
Internal
Dimensions
W x D x H
SHELL &
EXTERNAL KIT
CLADDING A
SHELL &
EXTERNAL KIT
CLADDING B
SHELL &
EXTERNAL KIT
CLADDING C
4m x 3m x 3m
Glazing C
£12,583.00 + VAT
£15,099.60 Inc VAT
£12,995.00 + VAT
£15,594.00 Inc VAT
£13,408.00 + VAT
£16,089.60 Inc VAT
4m x 3.5m x 3m
Glazing D
£13,198.00 + VAT
£15,837.60 Inc VAT
£13,650.00 + VAT
£16,380.00 Inc VAT
£14,102.00 + VAT
£16,922.40 Inc VAT
5m x 3m x 3m
Glazing D
£13,506.00 + VAT
£16,207.20 Inc VAT
£13,918.00 + VAT
£16,701.60 Inc VAT
£14,331.00 + VAT
£17,197.20 Inc VAT
5m x 3.5m x 3m
Glazing D
£13,996.00 + VAT
£16,795.20 Inc VAT
£14,408.00 + VAT
£17,289.60 Inc VAT
£14,821.00 + VAT
£17,785.20 Inc VAT
6m x 3m x 3m
Glazing D
£14,095.00 + VAT
£16,914.00 Inc VAT
£14,507.00 + VAT
£17,408.40 Inc VAT
£14,920.00 + VAT
£17,904.00 Inc VAT
6m x 3.5m x 3m
Glazing D
£14,212.00 + VAT
£17,054.40 Inc VAT
£14,659.00 + VAT
£17,590.80 Inc VAT
£15,107.00 + VAT
£18,128.40 Inc VAT

Optional extras

  • On the Shell + External Kit cladding can be changed from side to side, e.g. 2 sides Cedar and 2 sides Thermowood.
  • Full height windows are available for sides and aluminium glazing and bi-fold doors can be specified.

Please enquire for costs.

Download Price List
Internal
Dimensions
W x D x H
INTERNAL FINISHES KIT
4m x 3m x 3m £1,709.00 + VAT
£2,058.80 Inc VAT
4m x 3.5m x 3m £1,925.00 + VAT
£2,310.00 Inc VAT
5m x 3m x 3m £2.033.00 + VAT
£2,439.60 Inc VAT
5m x 3.5m x 3m £2,216.00 + VAT
£2,659.20 Inc VAT
6m x 3m x 3m £2,331.00 + VAT
£2,797.20 Inc VAT
6m x 3.5m x 3m £2,625.00 + VAT
£3,150.00 Inc VAT

Internal Finishes Kit

  • Decorative MDF Wall Panels
  • Cavity Batons
  • MDF Ceiling Sheets
  • Laminate Flooring & Underlay
  • Skirting Boards
  • Architraves
  • Wall & Ceiling Trims
Download Price List

Door Opening Options

Door Opening Optional Upgrades - Bifold Doors

Glazed Panels with Opening Windows

You can replace a SIP panel with a glazed panel from the choice below.

Our DIY Garden Room Kits

Self Build Buildings

Information & Guidance

We have a range of technical data, installation guides and useful information on building with SIPs, to help guide clients, architects and builders.

Find out more
Order Sips

How to Order from Us

If you would like to find out more, discuss a project you’re planning or request a quote, please call us on 01452 501455 or email us at [email protected], where we are on hand to discuss your plans for creating the additional space you’re looking for.

Alternatively, please complete the enquiry form and we’ll be in touch.

If you would like to visit us, please call us on 01452 501455 to book an appointment.
