Structural Insulated Panels

A Sustainable, Innovative and Efficient Approach to Building

What are SIP Panels?

Structural insulated panels (SIPs) are a modern and efficient method of construction, utilising off-site manufacture, and suitable for a variety of uses, ranging from small ancillary buildings through to residential, commercial, leisure and public sector construction projects. SIP panels consist of two sheets of OSB3 (oriented standard boards) adhered to a sheet of rigid foam insulation. These panels are compressed together under high pressure to form a structurally strong panel, set with specialist adhesive.

All of our panels are fabricated to exacting standards at our purpose-built manufacturing facility, using the highest quality closed cell EPS insulation and FSC certified and structurally graded orientated strand board.

SIP Panel Prices and Sizes

Future SIPs supply three different specifications of panels, each recommended for use in different settings. Prices are per panel and can be ordered in any quantity.

Code	Insulation Size	Panel Thickness	U Value	2.4m Price	3m Price
FS75-11	75mm	97mm	0.39	£92.50	£120.62
FS100-11	100mm	122mm	0.31	£100.60	£131.74
FS125-11	125mm	147mm	0.25	£112.75	£146.92
FS150-11	150mm	172mm	0.21	£129.80	£168.24
FS175-11	175mm	197mm	0.19	£142.60	£184.24
FS200-11	200mm	222mm	0.16	£158.48	£205.57

Standard SIP Panels

Our standard SIP panels are perfect for all non-building control builds, from garden rooms, outhouses and garages to infill panels and partitions, to give you a few ideas.

Download Price List

Code	Insulation Size	Panel Thickness	U Value	Price
FS75-15	75mm	105mm	0.39	£131.22
FS100-15	100mm	130mm	0.31	£143.32
FS125-15	125mm	155mm	0.25	£157.42
FS150-15	150mm	180mm	0.21	£172.80
FS175-15	175mm	205mm	0.19	£190.80
FS200-15	200mm	230mm	0.16	£208.80

Heavy Duty SIP Panels

The heavy duty SIP panels have been designed to carry heavier surface weights, such as kitchen cabinets or render boards, which can then take a full render or brick slips.

Download Price List

Code	Insulation Size	Panel Thickness	U Value	2.4m Price	3m Price
FS150-BC WALL	150mm	180mm	0.21	£172.80	-
FS175-BC WALL	175mm	205mm	0.19	£190.80	-
FS200-BC WALL	200mm	230mm	0.16	£208.80	-
FS175 -BC ROOF	175mm	208mm	0.19	£199.80	£238.50
FS200 -BC ROOF	200mm	233mm	0.16	£214.80	£268.50

Building Control Compliant SIP Panels

Our Building Control Compliant SIP panels have been rigorously tested for strength and performance and are suitable for use in house construction, annexes and a range of commercial and domestic settings that require structural calculations and need to pass Building Regulations.

Download Price List

Code	To fit insulation size	Price Each
IS-75	75mm	£13.36
IS-100	100mm	£14.35
IS-125	125mm	£15.35
IS-150	150mm	£16.49
IS-175	175mm	£17.59
IS-200	200mm	£18.82

Insulated Joining Splines

Prices inc VAT

The thermal efficiency of SIP panels is far higher than traditional build techniques and cold bridging is reduced due to insulated joining spines.

Download Price List

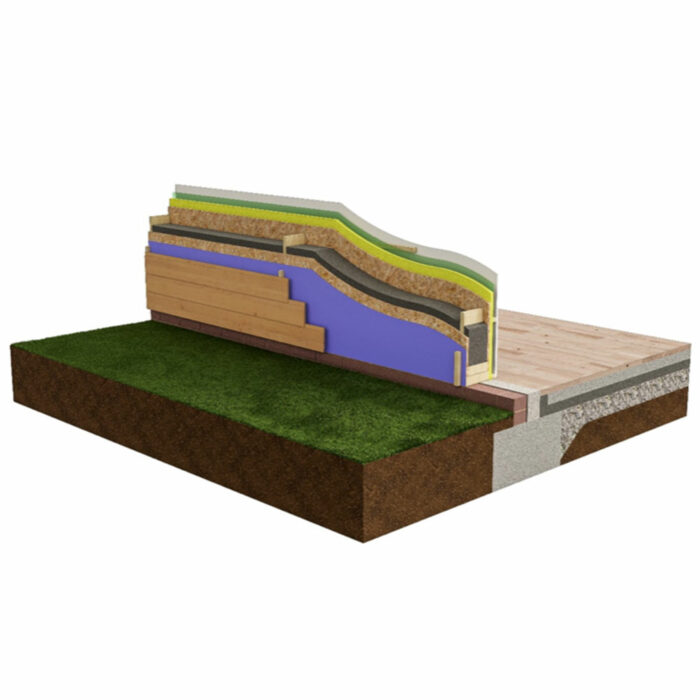

Future SIPs Building Regulations Compliant Wall System

Wall – Standard detail
FS150BC – 25int

External

Cladding (extra provision for fire resistance may be needed near a boundary)
50mm Batten
Breather Membrane
FS150BC load tested Wall Panel
25mm PIR Insulation
Vapour Control Layer
25mm Service Batten
12.5mm plasterboard

Internal

Complete wall build up U-value: 0.18 W/(m2K)

Under supply only contracts, assembly of the premanufactured SIPs superstructure, internal and external finishes are undertaken by the main contractor.

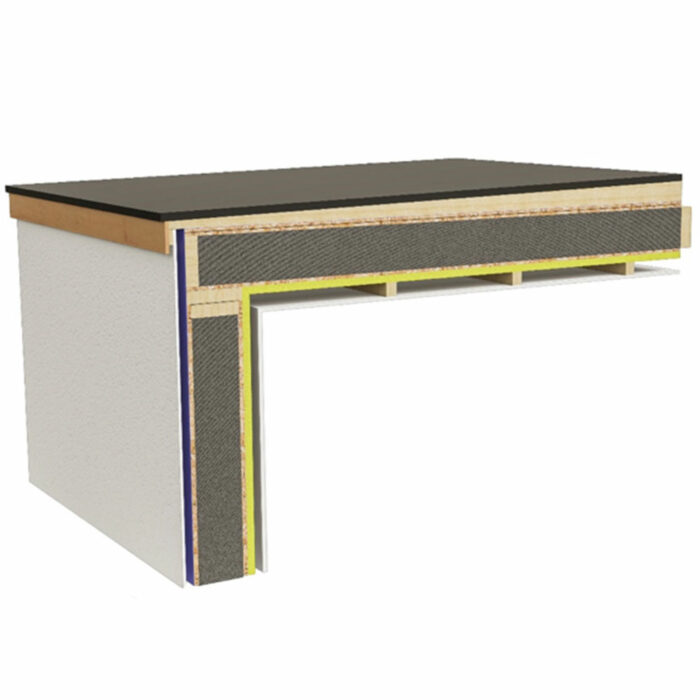

Future SIPs Building Regulations Compliant Roof System

Flat Roof – Standard detail
FS175BC – 25int

External

Roof Finish (i.e. single ply membrane)
Over Boarding
Roof Firring
Breather Membrane
FS175BC load tested Roof Panel
25mm PIR Insulation
Vapour Control Layer
25mm Service Batten
12.5mm plasterboard

Internal

Complete roof build up U-value: 0.15 W/(m2K)

Under supply only contracts, assembly of the premanufactured SIPs superstructure, internal and external finishes are undertaken by the main contractor.

Future SIPs Building Regulations Compliant Roof System

Pitch Roof – Standard detail
FS175BC – 25int

External

Roof Finish (i.e. plain clay tile)
25mm Batten
50mm Counter Batten
Breather Membrane
FS175BC load tested Roof Panel
25mm PIR Insulation
Vapour Control Layer
25mm Service Batten
12.5mm plasterboard

Internal

Complete roof build up U-value: 0.15 W/(m2K)

Under supply only contracts, assembly of the premanufactured SIPs superstructure, internal and external finishes are undertaken by the main contractor.

Why SIPs?

Structural insulated panels are one of the most sustainable and efficient construction materials, both during manufacture and construction, and create energy-efficient buildings suitable for a variety of uses.

DIY Garden Rooms
Home Extensions
Annexes
Bespoke Buildings
Airbnb / Holiday Lets
Commercial Spaces
Education Buildings
Sports Facilities
Leisure Buildings
Park Homes
Self-Build Homes
Garden Rooms, Offices, Studios and Pods

SIPs: A Sustainable and Efficient Approach to Building

SIPs are one of the most cost-effective and energy-efficient building systems and offer a more innovative and quicker method of construction than traditional building methods. The benefits of SIPs construction results in a high-quality construction combined with a highly environmentally solution to traditional building methods.

Its lightweight structure reduces carbon emissions for the footings, transportation and construction, while its thermal efficiency reduces the carbon emissions over the building’s lifetime and the recyclable insulation, coupled with the low-waste off-site manufacturing and construction process, ensure high levels of efficiency from start to finish. The adoption of such construction techniques will be instrumental in decarbonizing the built environment and achieving net zero by 2050, an essential target set out at COP26.

The Benefits of Building with SIPs

Faster Construction Speeds

The premanufactured nature of SIP panels offers a significantly reduced site installation time in comparison to traditional construction methods such as masonry or timber framing.

This minimises disruption on site and provides a weather-tight structural shell in as little as a few days. Building with SIPs can be up to three time faster than traditional building methods.

The construction of a SIPs superstructure is much less reliant on weather conditions than traditional brick and mortar, allowing fast installation all year round.

Reduced Energy Costs

SIPs are very airtight in its construction and with less timber required than traditional timber frame construction, there is a vast reduction of cold bridges in the wall build up and less energy is needed to heat and cool rooms.

Our panels are constructed with high quality close cell grey EPS insulation, an inert material which, unlike PIR and PUR insulation, does not off-gas or degrade over time. This ensures a healthy living environment and a building fabric that will perform consistently over time.

These factors, coupled with the exacting quality control and manufacturing tolerances we work to, offer a highly efficient thermal envelope for your project.

Lower On-Site Costs

Due to the stringent, tried and tested design and manufacturing process, materials work harmoniously together, delivering a highly predictable and reliable product whilst minimising construction waste and labour costs.

This reduces site equipment hire and labour costs, as well as minimising any disruption on site and provides a weather tight structural shell in as little as a few days.

With less trades and materials required and less waste onsite, SIPs buildings are naturally more environmentally friendly and cost-efficient.

High Structural Performance

The composite construction of SIPs offers enhanced structural performance, strength and stability in comparison to traditional construction methods.

They offer versatility and flexibility in their usage and are capable of withstanding extreme weather and climate conditions, while being stronger and less susceptible to shifting than traditional timber framing.

SIPs do not degrade or deteriorate over time and are up to five times stronger than timber frame construction.

Our SIP wall and roof systems have been subject to a rigorous testing schedule, undertaken by third party building materials and technology experts, to British Standard design loads.

Lightweight Prefabricated Structure

In addition to being incredibly strong, SIPs construction is a lightweight system. This can minimise disruption on site, utilising low impact footings (where ground conditions permit), requiring less labour and allowing for easier handling on site during construction.

Its lightweight structure makes it ideal for sites with access challenges and smaller sites and reduces carbon emissions for the footings, transportation and construction.

SIP panels can be combined with a range of other building materials, such as stone, wood, brick, block, tiles, slate, steel and glass, offering a high degree of design flexibility.
