Studio DIY Garden Room Kit

Create Stunning Additional Space with an Efficient, Insulated DIY Studio Garden Room; Designed by Us, Installed by You

Studio DIY Garden Room Kit

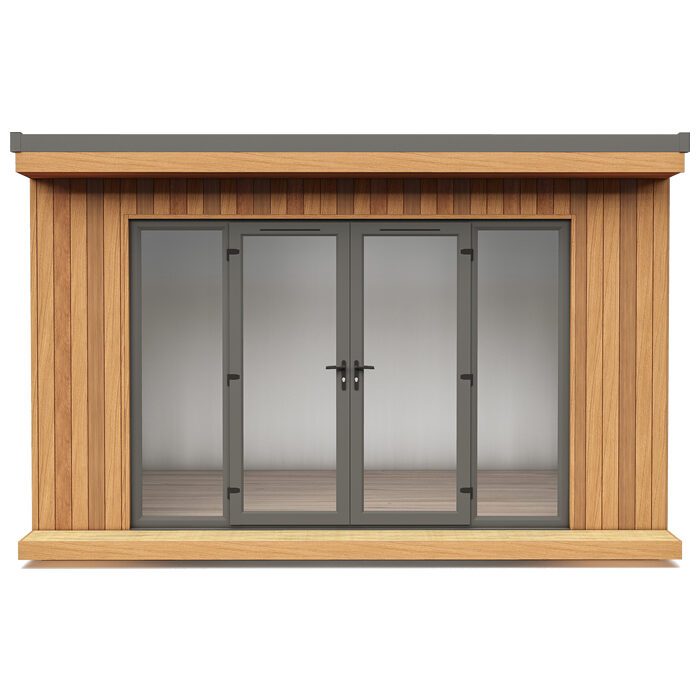

The Studio is a light and airy room featuring large glazed panels and is our most popular garden room, being ideal for a wide range of uses. It can be built to the dimensions you need and finished in your choice of cladding, to suit the style and size of your garden.

Rooms can be selected as a set size from our ‘off the shelf’ range or ‘made to measure’ for individual project requirements.

Prices

Shell Kit

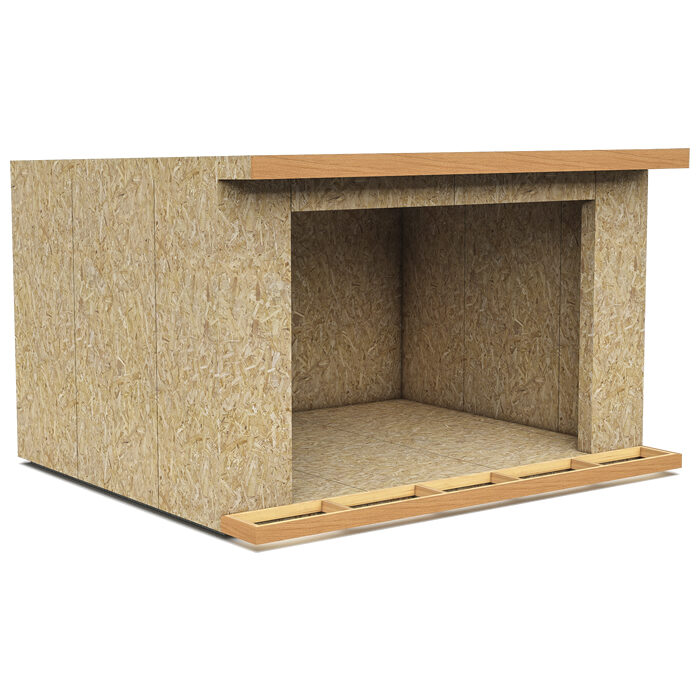

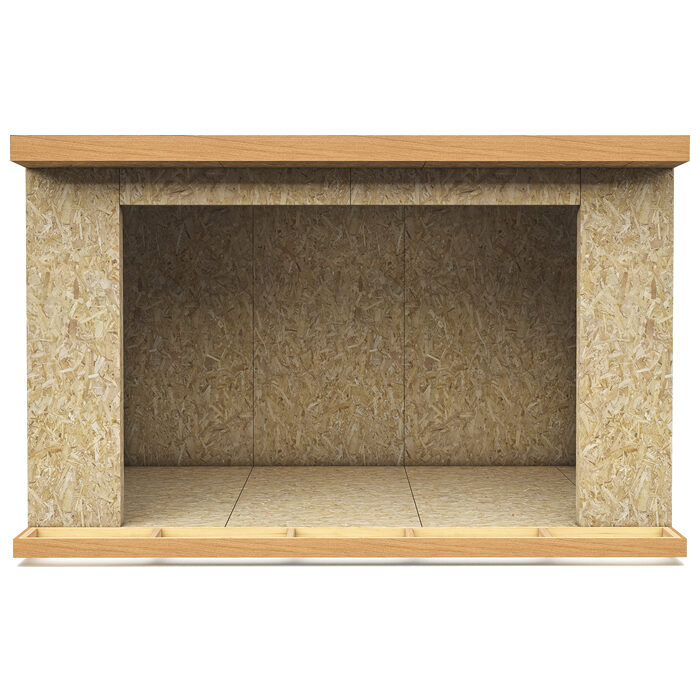

The Shell Kit provides the insulated structure for your garden room or garden office.

Supplied as a pre-manufactured SIPs kit, with a full set of instructions and drawings, this garden room is quick and simple for a competent DIYer or builder to assemble on site. You can then finish the shell kit internally and externally to the specification required, offering the ultimate flexibility in the garden room’s finish and function.

Prices

Shell & External Kit

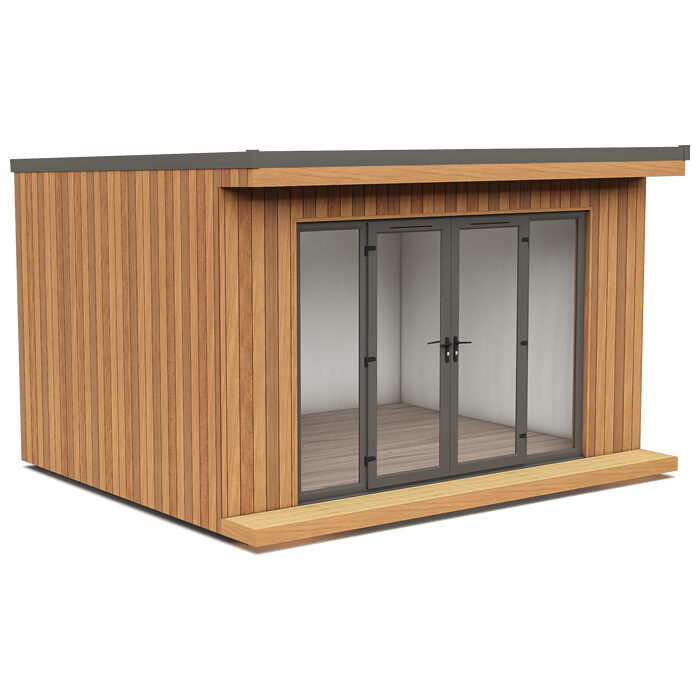

The Shell & External Kit provides the insulated structure and external finishes for your garden room.

As with the Shell Kit, it is supplied as a pre-manufactured SIPs kit, with full instructions and drawings, with the addition of breather membrane, batten, EPDM roof kit, guttering and your choice of cladding and glazing to finish the room externally. The internal finishes can then be chosen and completed by the self-builder.

Prices

Studio Shell Kit Features

SIP wall, roof and floor panels 122mm thick (100mm insulation)
SIP floor panels with bitumen coated underside
Water resistant floor bearers
Door opening and lintel sized to room from 2 metres to 2.8 metres
All splines, timber cappings and floor and top plates
Full fixing kit of screws and timber locks
Expanding foam and wood glue
400mm overhang to front
D.P.C. and rain sheet
Full instruction guide and video
Full technical drawing, including ground screw layout (if required)

Studio Shell & External Kit Features

SIP wall, roof and floor panels 122mm thick (100mm insulation)
SIP floor panels with bitumen coated underside
Water resistant floor bearers
External cladding of choice + 10%
Glazing for your size of room and lintel
Breather membrane
Cavity batten
EPDM complete rubber roof kit
Guttering and down pipe
All splines, timber cappings and floor and top plates
Stainless steel brad nails
Full fixing kit of screws and timber locks
Expanding foam and wood glue
400mm overhang to front
D.P.C. & rain sheet
Full instruction guide and video
Full technical drawing, including ground screw layout (if required)

Internal Finishes Kit

Decorative MDF Wall Panels
Cavity Batons
MDF Ceiling Sheets
Laminate Flooring & Underlay
Skirting Boards
Architraves
Wall & Ceiling Trims

Wood Finishes / External Cladding Options

Thermowood

British Cedar

Western Red Cedar

Studio Garden Room Kit Prices

Internal Dimensions W x D x H	Shell Kit
3m x 2.4m x 2.5m Opening C	£3,688.00 +VAT £4,425.60 inc VAT
3.5m x 2.4m x 2.5m Opening D	£3,853.00 +VAT £4,623.60 inc VAT
4m x 2.4m x 2.5m Opening D	£3,982.00 +VAT £4,778.40 inc VAT
3m x 3m x 2.5m Opening C	£3,958.00 + VAT £4,749.60 inc VAT
3.5m x 3m x 2.5m Opening D	£4,241.00 +VAT £5,089.20 inc VAT
4m x 3m x 2.5m Opening D	£4,397.00 + VAT £5,276.40 inc VAT
4.5m x 3m x 2.5m Opening D	£4,677.00 +VAT £5,612.40 inc VAT
5m x 3m x 2.5m Opening D	£4,957.00 + VAT £5,948.40 Inc VAT
5.5m x 3m x 2.5m Opening D	£5,058.00 +VAT £6,069.60 inc VAT
6m x 3m x 2.5m Opening D	£5,563.00 + VAT £6,675.60 Inc VAT
4m x 4m x 2.5m Opening D	£5,210.00 + VAT £6,252.00 inc VAT
5m x 4m x 2.5m Opening D	£6,023.00 + VAT £7,227.60 Inc VAT
6m x 4m x 2.5m Opening D	£6,830.00 + VAT £8,196.00 Inc VAT

Rooms are set sizes. Delivery charges may apply and will vary subject to location.

Download

Internal Dimensions W x D x H	SHELL & EXTERNAL KIT THERMOWOOD	SHELL & EXTERNAL KIT BRITISH CEDAR	SHELL & EXTERNAL KIT WESTERN RED CEDAR
3m x 2.4m x 2.5m Glazing C	£9,395.00 + VAT £11,274.00 Inc VAT	£9,795.00 + VAT £11,754.00 Inc VAT	£10,195.00 + VAT £12,234.00 Inc VAT
3.5m x 2.4m x 2.5m Glazing D	£9,652.00 + VAT £11,582.40 Inc VAT	£10,052.00 + VAT £12,062.40 Inc VAT	£10,452.00 + VAT £12,542.40 Inc VAT
4m x 2.4m x 2.5m Glazing D	£9,909.00 + VAT £11,890.40 Inc VAT	£10,309.00 + VAT £12,370.80 Inc VAT	£10,709.00 + VAT £12,850.80 Inc VAT
3m x 3m x 2.5m Glazing C	£9,722.00 + VAT £11,666.40 Inc VAT	£10,122.00 + VAT £12,146.40 Inc VAT	£10,572.00 + VAT £12,686.40 Inc VAT
3.5m x 3m x 2.5m Glazing D	£10,002.00 + VAT £12,002.40 Inc VAT	£10,402.00 + VAT £12,482.40 Inc VAT	£10,827.00 + VAT £12,992.40 Inc VAT
4m x 3m x 2.5m Glazing D	£10,283.00 + VAT £12,399.60 Inc VAT	£10,683.00 + VAT £12,819.60 Inc VAT	£11,083.00 + VAT £13,299.60 Inc VAT
4.5m x 3m x 2.5m Glazing D	£10,794.00 + VAT £12,952.80 Inc VAT	£11,194.00 + VAT £13,432.80 Inc VAT	£11,619.00 + VAT £13,942.80 Inc VAT
5m x 3m x 2.5m Glazing D	£11,306.00 + VAT £13,567.20 Inc VAT	£11,706.00 + VAT £14,047.20 Inc VAT	£12,156.00 + VAT £14,587.20 Inc VAT
5.5m x 3m x 2.5m Glazing D	£11,435.00 + VAT £13,722.00 Inc VAT	£11,935.00 + VAT £14,322.00 Inc VAT	£12,450.00 + VAT £14,940.00 Inc VAT
6m x 3m x 2.5m Glazing D	£11,895.00 + VAT £14,274.00 Inc VAT	£12,320.00 + VAT £14,784.00 Inc VAT	£12,745.00 + VAT £15,294.00 Inc VAT
4m x 4m x 2.5m Glazing D	£11,376.00 + VAT £13,651.20 Inc VAT	£11,876.00 + VAT £14,251.20 Inc VAT	£12,395.00 + VAT £14,874.00 Inc VAT
5m x 4m x 2.5m Glazing D	£11,945.00 + VAT £14,334.00 Inc VAT	£12,370.00 + VAT £14,844.00 Inc VAT	£12,895.00 + VAT £15,474.00 Inc VAT
6m x 4m x 2.5m Glazing D	£12,422.00 + VAT £14,906.40 Inc VAT	£12,872.00 + VAT £15,446.40 Inc VAT	£13,322.00 + VAT £15,986.40 Inc VAT

Optional extras

On the Shell + External Kit cladding can be changed from side to side, e.g. 2 sides Cedar and 2 sides Thermowood.
Full height windows are available for sides and aluminium glazing and bi-fold doors can be specified.

Please enquire for costs.

Download

Internal Dimensions W x D x H	INTERNAL FINISHES KIT
3m x 2.4m x 2.5m	£1,296.00 + VAT £1,555.20 inc VAT
3.5m x 2.4m x 2.5m	£1,345.00 +VAT £1,614.00 inc VAT
4m x 2.4m x 2.5m	£1,559.00 +VAT £1,870.80 inc VAT
3m x 3m x 2.5m	£1,395.00 + VAT £1,674.00 Inc VAT
3.5m x 3m x 2.5m	£1,502.00 +VAT £1,802.40 inc VAT
4m x 3m x 2.5m	£1,609.00 + VAT £1,930.80 Inc VAT
4.5m x 3m x 2.5m	£1,753.00 +VAT £2,103.60 inc VAT
5m x 3m x 2.5m	£1,933.00 + VAT £2,319.60 Inc VAT
5.5m x 3m x 2.5m	£2,082.00 +VAT £2,498.40 inc VAT
6m x 3m x 2.5m	£2,231.00 + VAT £2,677.20 Inc VAT
4m x 4m x 2.5m	£2,053.00 + VAT £2,463.60 Inc VAT
5m x 4m x 2.5m	£2,515.00 + VAT £3,018.00 Inc VAT
6m x 4m x 2.5	£2,690.00 + VAT £3,228.00 Inc VAT

Internal Finishes Kit

Decorative MDF Wall Panels
Cavity Batons
MDF Ceiling Sheets
Laminate Flooring & Underlay
Skirting Boards
Architraves
Wall & Ceiling Trims

Download

SIPs Layouts

Internal Dimensions W x D x H	Opening	SIPs layouts
3m x 2.4m x 2.5m	Opening C	Download
3.5m x 2.4m x 2.5m	Opening D	Download
4m x 2.4m x 2.5m	Opening D	Download
3m x 3m x 2.5m	Opening C	Download
3.5m x 3m x 2.5m	Opening D	Download
4m x 3m x 2.5m	Opening D	Download
4.5m x 3m x 2.5	Opening D	Download
5m x 3m x 2.5m	Opening D	Download
5.5m x 3m x 2.5m	Opening D	Download
6m x 3m x 2.m	Opening D	Download
4m x 4m x 2.5m	Opening D	Download
5m x 4m x 2.5m	Opening D	Download
6m x 4m x 2.5m	Opening D	Download

Door Opening Options

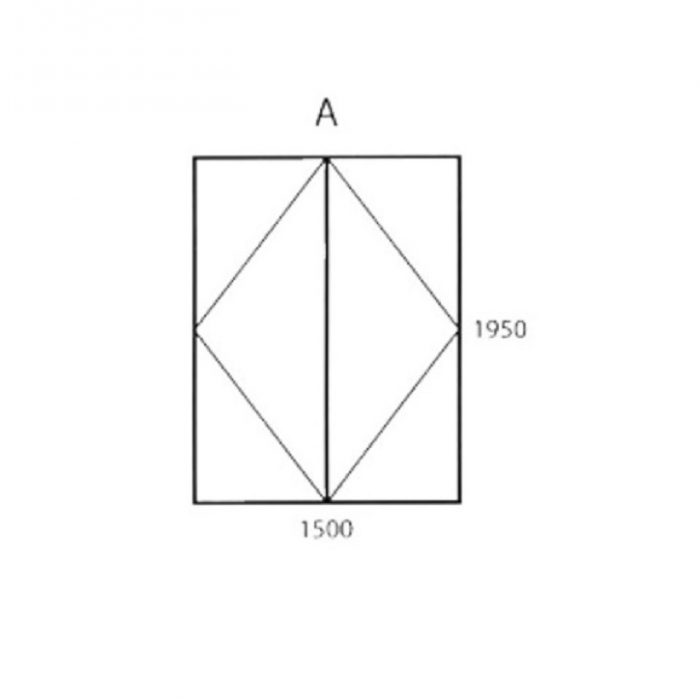

Door Opening A

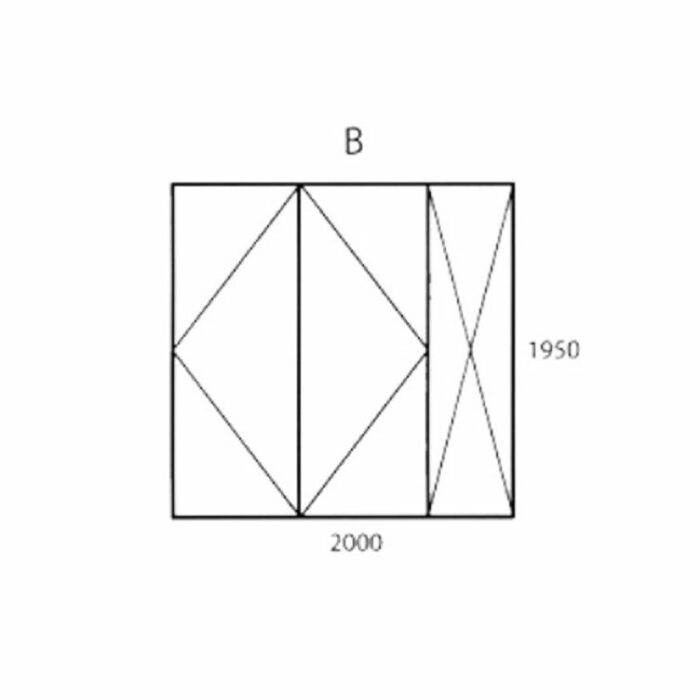

Door Opening B

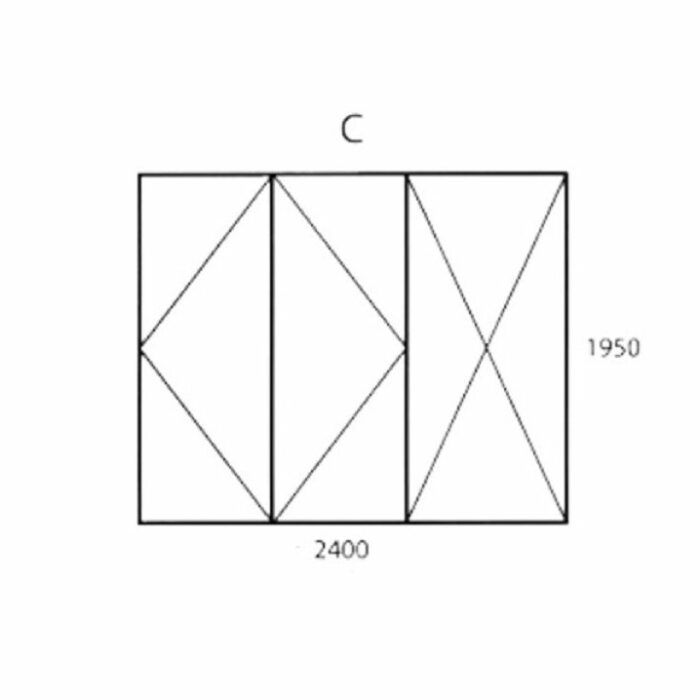

Door Opening C1

Door Opening C2

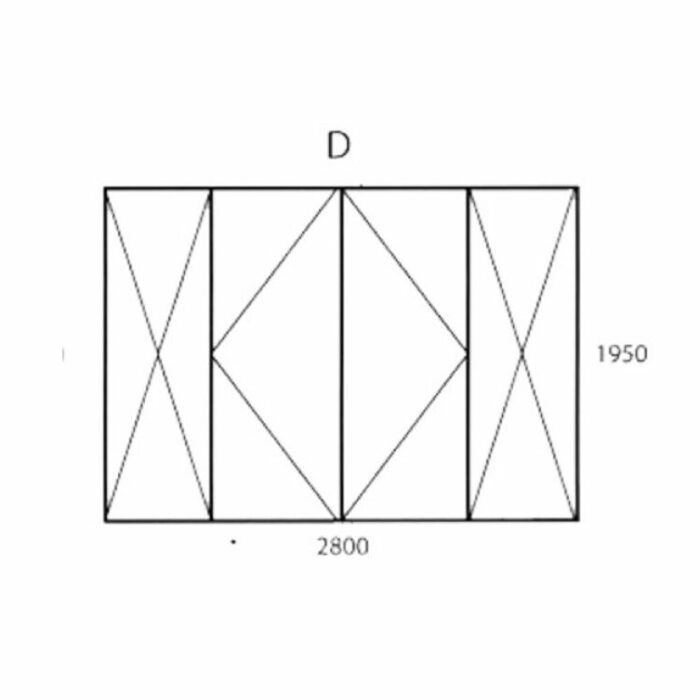

Door Opening D1

Door Opening D2

Door Opening Optional Upgrades - Bifold Doors

Door Opening E1

Additional £1,400 + VAT

Door Opening E2

Additional £1,800 + VAT

Door Opening E3

Additional £2,200 + VAT

Glazed Panels with Opening Windows

You can replace a SIP panel with a glazed panel from the choice below.

Glazing W

Additional £60

Glazing X

Additional £60

Glazing Y

Additional £60

Glazing Z

Additional £60

Glazing W1

Additional £382 + VAT

Glazing X1

Additional £482 + VAT

Glazing Y1

Additional £504 + VAT

Glazing Z1

Additional £288 + VAT
