DIY Metro

Garden Room Kit

Classic Escape Garden Room

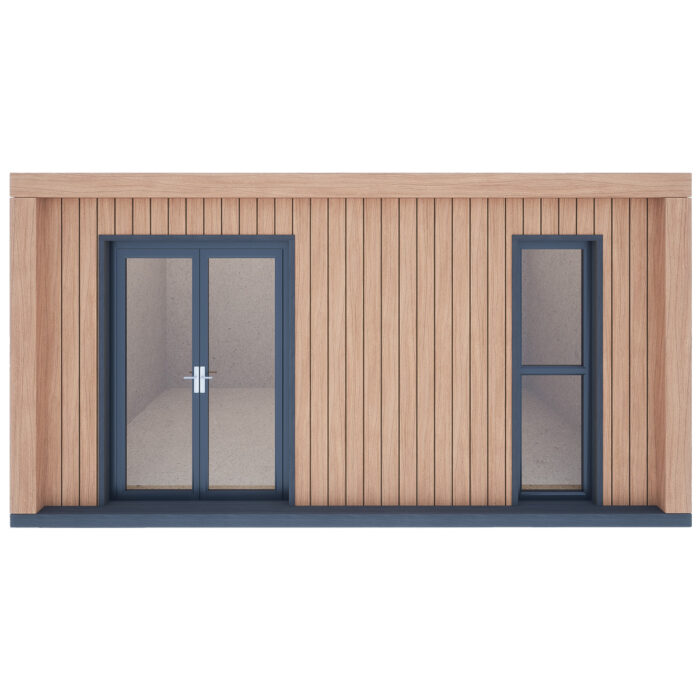

The Metro is a stunning DIY room with a versatile internal space. This self-build garden room features detailing with the cladding around the doors and fascia and has French doors to one side of the front elevation and a full-height glazed panel to the other.

The result is a bright, contemporary and bold garden room, perfect for home office working and leisure use.

Installed Metro Garden Room

Metro Specifications

Essential Metro Garden Room

Metro Shell Kit

  • SIP wall, roof and floor panels: Premier 122mm thick with 100mm insulation or Classic 97mm thick with 75mm insulation
  • SIP floor panels with bitumen-coated underside
  • Water-resistant floor bearers
  • Door opening and lintel sized to room from 2 metres to 2.8 metres
  • All splines, timber cappings and floor and top plates pre-cut to length
  • A complete set of fixings (screws and timber locks)
  • Expanding foam and wood glue
  • 400mm overhang to front
  • D.P.C. and rain sheet
  • Full instruction guide and video
  • Full technical drawing, including ground screw layout (if required)
Metro Shell Kit Prices & Sizes
Essential Metro Garden Room Kit

Metro Shell & External Kit

  • SIP wall, and floor panels: Premier 122mm thick with 100mm insulation or Classic 97mm thick with 75mm insulation
  • SIP Roof Panel 122mm thick (100mm insulation)
  • SIP floor panels with bitumen-coated underside
  • Water-resistant floor bearers
  • External cladding of choice + 10%
  • UPVC Glazing for your size of room and lintel (house-grade units)
  • Breather membrane
  • Cavity batten
  • EPDM complete rubber roof kit
  • Guttering and downpipe
  • All splines, timber cappings and floor and top plates pre-cut to length
  • Stainless steel brad nails for cladding
  • A complete set of fixings (screws and timber locks)
  • Expanding foam and wood glue
  • D.P.C. and rain sheet
  • Full instruction guide and video
  • Full technical drawing, including ground screw layout (if required)
Metro Shell & External Kit Prices & Sizes
Hybrid Self Build Garden Room

Complete Kit

  • SIP wall, and floor panels: Premier 122mm thick with 100mm insulation or Classic 97mm thick with 75mm insulation
  • SIP Roof Panel 122mm thick (100mm insulation)
  • SIP floor panels with bitumen-coated underside
  • Water-resistant floor bearers
  • External cladding of choice + 10%
  • UPVC Glazing for your size of room and lintel (house-grade units)
  • Breather membrane
  • Cavity batten
  • EPDM complete rubber roof kit
  • Guttering and downpipe
  • All splines, timber cappings and floor and top plates pre-cut to length
  • Stainless steel brad nails for cladding
  • Full fixing kit of screws and timber locks
  • Expanding foam and wood glue
  • MDF decorative panel (Premier) Standard MDF panel (Classic) adhered to internal SIP
  • Laminate flooring and underlay
  • Skirting and architrave
  • Scotia & Trims
  • D.P.C. and rain sheet
  • Full instruction guide and video
  • Full technical drawing, including ground screw layout (if required)
Metro Complete Kit Prices & Sizes

Cladding Options

Our shell and external and complete kits offer you a choice of external cladding from either Thermowood, British Cedar, Western Red Cedar or composite. Prices are shown for each option on our models' pages and assume all four walls of the building are clad in one timber type.

You can choose whether all sides of your room are clad in the same timber; where external walls are not visible, you may prefer to opt for a less expensive timber, and we can provide a price change for this on request.

Glazing Options

Shell Kit aperture: 2800mm

Shell & External and Complete Kits: 2800mm of either sliding patio or French doors with two glazed side panels.

French Doors With Two Side Panels

Sliding Patio Door

Installation Videos

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

Vimeo

By loading the video, you agree to Vimeo’s privacy policy.
Learn more

Load video

DIY Garden Rooms - Diplomat

Extras & Upgrades

We offer upgrades and extras if you wish to customise your installed garden room or garden room kit.

We can offer bespoke sizes in the entire Premier range. Our Classic range is only available in the sizes shown.

In both the Premier and Classic ranges, the cladding can be changed from side to side, e.g., 2 sides Cedar and 2 sides Thermowood.

Additional windows and doors can be added to all Premier models, and glazing can be upgraded to aluminium and/or bi-fold doors if desired.

Installed rooms can also have rebated electrical sockets and spotlights as an upgrade.

Additional costs will be quoted accordingly.
